Fiber Optic Pool Lighting Kit Sizing Guide: 50 m, 100 m or 200 m?

Choosing a fiber optic pool lighting kit comes down to one number: how many meters of glowing line your pool really needs. Buy too little fiber and the outline stops short of the spa or the steps. Buy far more than you need and you pay for capacity that sits on the reel. This guide shows you how to measure your pool in about ten minutes, convert feet to meters, and match the total to our 50 m, 100 m or 200 m systems.

We use real pool sizes, simple formulas and worked examples for plunge pools, family pools, pools with a spa, lap pools and resort pools. At the end you will know which of our three systems fits your project, what is included in each, and when it makes sense to call us for a custom configuration instead.

Why sizing a fiber optic pool lighting kit matters

A fiber optic system is different from a box of LED fixtures. With LED pool lights, you count fixtures. With fiber, you buy a length of glowing line and one light source that drives it. Our 360° side-glow fiber lights evenly around its full circumference and along its whole length, and a single patent-pending laser unit can drive runs of 200+ meters. That means the length of fiber in the kit, and the power of the laser unit that drives it, decide what you can outline.

Getting the size right does three things for you:

• It protects the look. The signature effect is one unbroken line of color. A kit that is a few meters short forces you to drop the spa edge or the last step, and the design looks unfinished.
• It protects your budget. The jump from the 50 m kit to the 100 m kit is $2,000, and from 100 m to 200 m it is $5,000. Measuring first keeps you in the right tier.
• It leaves room to grow. Many owners start with the pool and later want the deck edge, planters, a pergola or the house roofline in the same color. If you know your numbers, you can pick a system with spare capacity now.

If you are new to the technology, start with our fiber optic pool lighting buyer's guide and the overview of our 360° laser technology, then come back here to size your system.

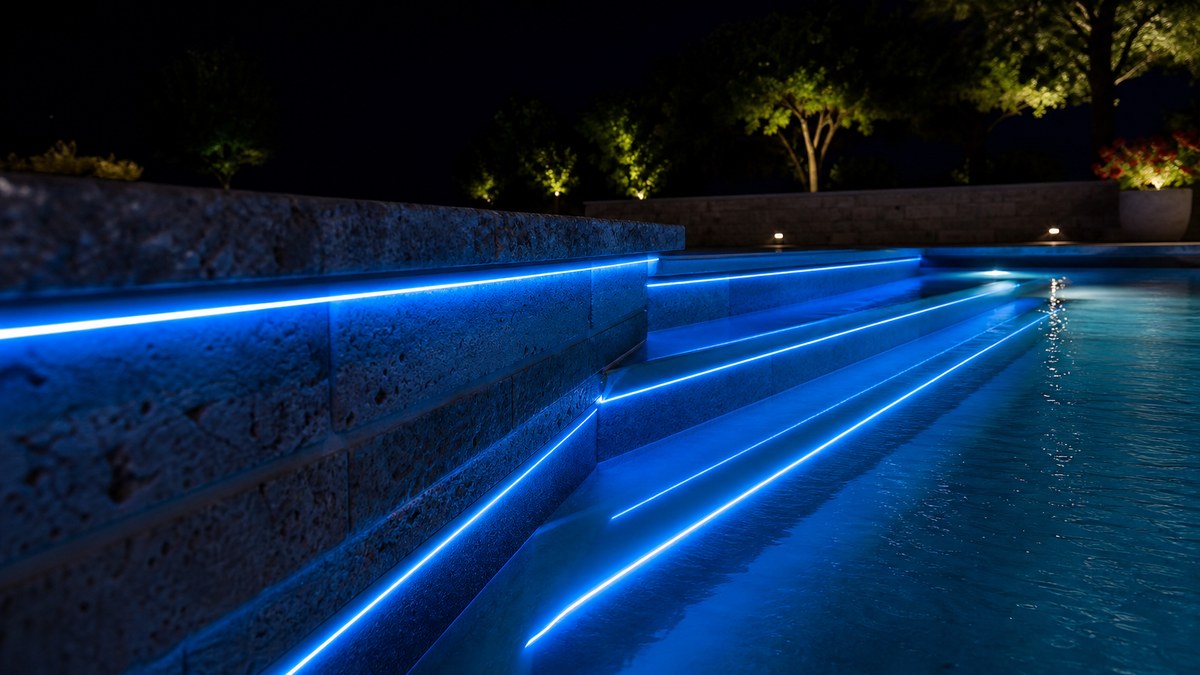

Step 1: measure every edge you want to glow

Grab a tape measure, a notepad or your pool plans, and walk the pool. Write down each line of light as its own item. Most pools break down into the same five groups.

1. The pool perimeter

For a rectangle, the formula is 2 x (length + width). A 16 x 32 ft pool is 2 x (16 + 32) = 96 ft. For a freeform or kidney pool, run a flexible tape or a string along the coping and measure the string. If you have the builder's plans, the perimeter is often listed on them. This is the line most owners care about most, and it is the heart of pool perimeter lighting with side-glow fiber.

2. Steps, benches and tanning ledges

Measure the front edge of each step and bench. Three entry steps that are each 8 ft wide add 24 ft. A sun shelf or tanning ledge adds its front edge, and sometimes its sides. Lit step edges help swimmers see where the pool floor changes at night.

3. Spa, spillway and raised walls

A round spa's edge is about 3.14 x its diameter, so an 8 ft spa is about 25 ft. Add the spillway lip and any raised bond beam or wall you want outlined. For more ideas around falling water, see our water feature lighting guide.

4. Water features and vanishing edges

Sheer descents, scuppers, fountain rims and vanishing edges each add their own length. A vanishing edge is often the longest single line on a hillside pool, and the catch basin below may add a second line of the same length.

5. Beyond the water

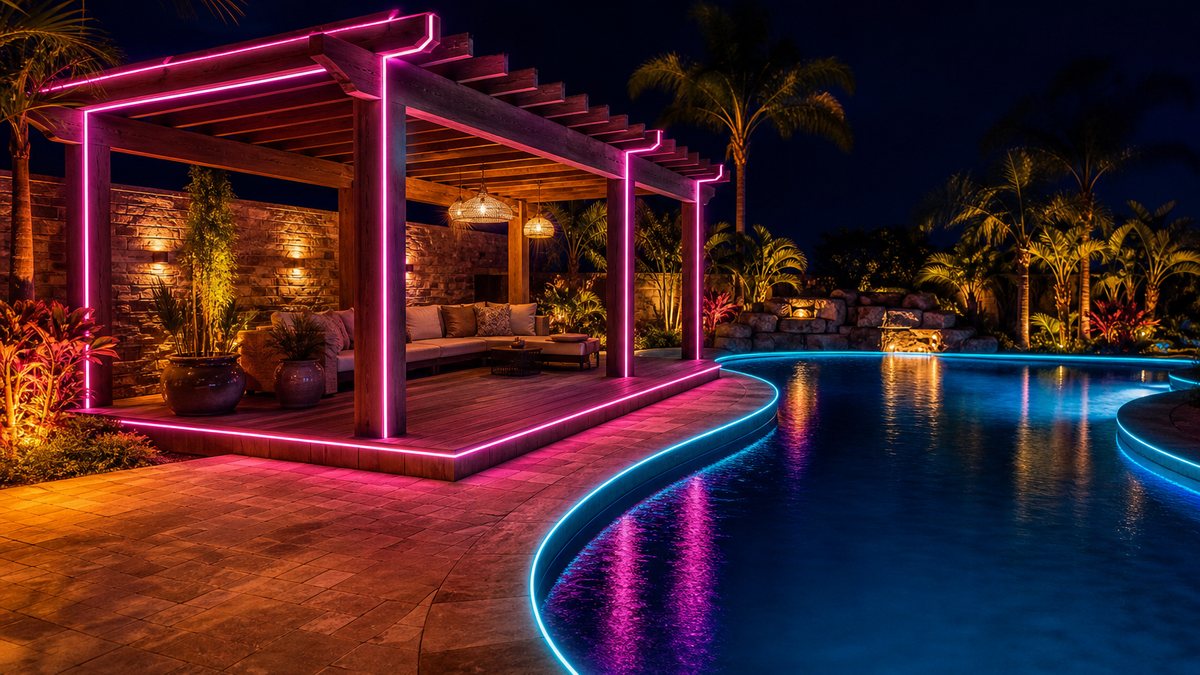

Deck edges, planters, fire-pit surrounds, pergolas, cabanas and the pool house or main house roofline all count. Many owners match the pool color to the roofline for a unified look. Our building outline lighting guide shows how rooflines and parapets are measured.

Step 2: convert feet to meters and add a margin

Our systems are sold by meters of fiber, so convert your total: meters = feet ÷ 3.28. Then add about 10% for corners, curves, tucking the fiber into the track and small measuring errors. A freeform pool with tight curves or many separate lines may need a little more.

Here is the math for common pool sizes. The standard in-ground sizes below (16 x 32, 18 x 36 and 20 x 40 ft) are widely used by builders, with 16 x 32 ft often cited as the most common concrete pool size.

Notice how close a standard pool perimeter sits to the 50 m line once you add the extras. That is why the most common question we hear is not "which kit fits my pool?" but "which kit fits my pool and everything around it?"

Step 3: match your total to the right system

Once you have a total in meters, the choice is usually clear. Here is what each system includes, at early-bird pricing at the time of writing.

System prices cover the equipment, fiber, controller and installation kit. Installation labor by your pool builder, installer or electrician is separate and varies by project. Every system is backed by a 30-day money-back guarantee. See the full comparison in our systems and pricing section, and call for current availability.

When the Residential Starter (50 m) is right

Choose the Starter when your lit lines total roughly 45 m or less with margin. That covers plunge pools, cocktail pools, small and mid-size family pools, a spa on its own, or a courtyard water feature. A 16 x 32 ft pool perimeter (about 32 m with margin) fits comfortably, with some meters left for a step line. The Starter is designed for confident DIY installers and includes a setup guide and video support, but a licensed electrician should still power the laser unit.

When the Professional Pool System (100 m) is right

This is our most popular system for a reason. Once you add a spa, steps, a bench and a spillway to a standard pool, most backyards land between 45 and 90 m. The Professional Pool System doubles the fiber to 100 m and adds a weatherproof LF40 unit, a premium RGB controller, pool-specific mounting hardware, a professional installation kit and a 2-year warranty. It also gives you headroom to outline a pergola, planters or part of the roofline later.

When the Commercial / Architectural system (200 m) is right

Choose the Commercial system when your total runs from about 90 to 180 m, or when you need separate zones that change color on their own. The LF120 12-watt laser unit drives 200 m of fiber, and the DMX-compatible controller supports multi-zone scenes and custom color programming. Typical projects include large estates that light the pool, spa, deck and the whole home roofline, plus resort, hotel and HOA pools. Learn more on our commercial lighting services page.

Worked examples: five real-world layouts

These examples use typical dimensions so you can see how fast extras add up. Your numbers will differ, so measure your own pool before you order.

Example 1: plunge pool in a city courtyard

A 7 x 12 ft plunge pool has a 38 ft perimeter (11.6 m). Add a 10 ft raised wall with a scupper and a 6 ft entry step, and the total is 54 ft, or about 18 m with margin. Fit: Residential Starter, with more than 30 m to spare for planters or a garden wall.

Example 2: standard 16 x 32 ft family pool

The perimeter is 96 ft. Three 8 ft steps add 24 ft, and a 10 ft bench adds 10 ft. Total: 130 ft, or 39.6 m, about 44 m with margin. Fit: Residential Starter, right at the edge. If you think you will want a spa or deck line later, step up to the Professional Pool System now.

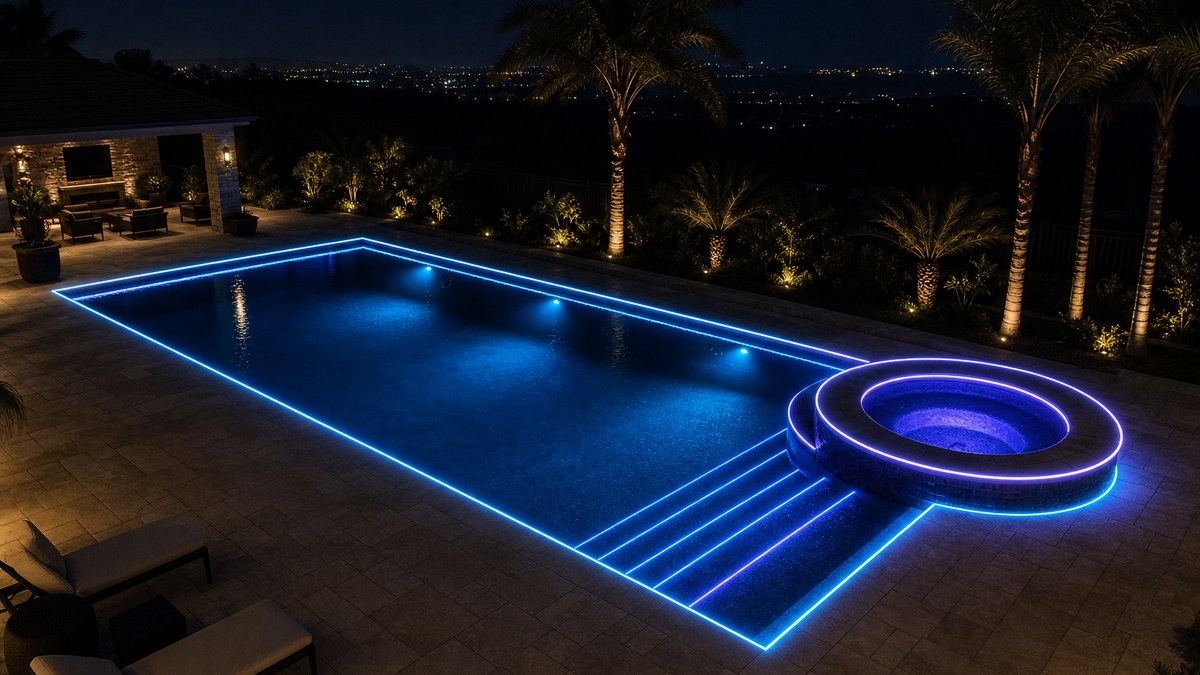

Example 3: 18 x 36 ft pool with spa and spillway

The perimeter is 108 ft. An 8 ft round spa adds about 25 ft, a 6 ft spillway adds 6 ft, three steps add 24 ft and a tanning ledge front adds 12 ft. Total: 175 ft, or 53.4 m, about 59 m with margin. Fit: Professional Pool System, with roughly 40 m left for a pergola or the pool-house roofline.

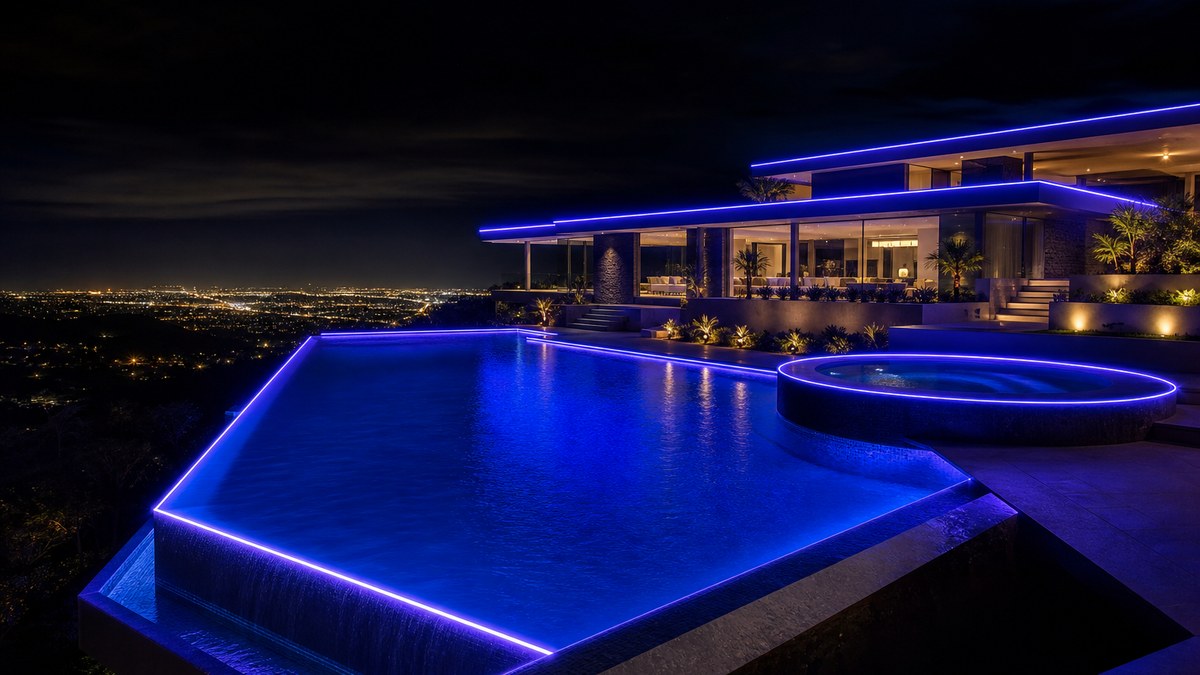

Example 4: hillside pool with a vanishing edge and roofline

A 20 x 40 ft pool has a 120 ft perimeter. The vanishing edge catch basin adds 40 ft, the spa adds 25 ft, steps add 24 ft, and the owner wants the 130 ft back roofline of the home in the same color. Total: 339 ft, or 103 m, about 114 m with margin. Fit: Commercial / Architectural, which also lets the roofline and the pool run as separate zones.

Example 5: HOA or boutique hotel pool

A 30 x 60 ft community pool has a 180 ft perimeter. Add a 40 ft step and ramp line, a 30 ft spa and 120 ft of cabana and deck edges. Total: 370 ft, or 113 m, about 124 m with margin. Fit: Commercial / Architectural. For commercial pools, remember that fiber is an accent and wayfinding layer. It never replaces the night-swimming illumination required by state health codes (for example Nevada NAC 444.142 or Utah R392-302-18). Our hotel and resort pool lighting guide covers how the layers fit together.

Fiber optic pool lighting kit sizing cheat sheet

Five sizing mistakes to avoid

1. Measuring only the water's edge. The perimeter is the start, not the total. Steps, spa, spillway and benches often add a third or more to the total.
2. Forgetting the route from the laser unit. The unit sits away from the water in a dry spot. Plan the path from the equipment area to the first lit edge before you choose a system.
3. Skipping the margin. Corners, curves and seating the fiber into the track use extra length. Around 10% is a sensible buffer.
4. Buying for today only. If a pergola, outdoor kitchen or roofline is on your wish list, size for it now. It is easier to plan one system than to add a second one later.
5. Treating fiber as your only pool light. Fiber outlines edges beautifully, but most owners still keep an underwater light for general in-pool brightness. On commercial pools, the code-required light always stays.

Retrofit or new build: does it change the size?

The meters you need are the same whether you are building a new pool or upgrading an old one. What changes is how the fiber is mounted. In new construction, the track is set into the coping or wall during the build, which is the cleanest and least expensive route. In an existing pool, fiber usually goes under the coping lip or into a low-profile surface track, and routing back to the equipment area may follow a different path. Our pool lighting retrofit guide walks through the options step by step.

Why one long run beats many short ones

Older fiber optic pool lighting used halogen, metal halide or LED illuminators, and the light faded along longer runs. Builders often split a pool into several short runs, each with its own illuminator. Our laser source is far more concentrated, which is why one unit can drive 200+ meters and deliver 3x better color saturation than LED ribbon. Fewer light sources means fewer electrical connections and a simpler install. The technology was named LDI 2024 Best New Product and was selected by Genesis for its 2026 GV80 campaign.

It also changes how you compare options. If you are weighing fiber against LED neon flex or LED strip for the deck or roofline, our fiber optic vs LED neon flex comparison explains where each one makes sense. If you are comparing suppliers, our guide to fiber optic lighting manufacturers lists the questions to ask.

How to order the right system

1. Measure and list every line in feet, then convert to meters and add about 10%.
2. Mark the laser unit location on a simple sketch or your plans.
3. Pick the system from the table above, or tell us your total and we will confirm it.
4. Confirm availability by calling (702) 738-2218 or sending the quote form.
5. Book your installer and electrician. Your pool builder or installer mounts the track and fiber; a licensed electrician powers the unit.
6. Program your colors. Set favorite colors, fades and scenes, or DMX zones on the Commercial system.

Have questions about features, colors or warranties? The product FAQ covers the basics, and our applications section shows where the fiber works best. For full design-build support on larger projects, ask about our Luminance program. Our licensed installation partner has completed 200+ major sports and commercial projects across the US and Canada.
